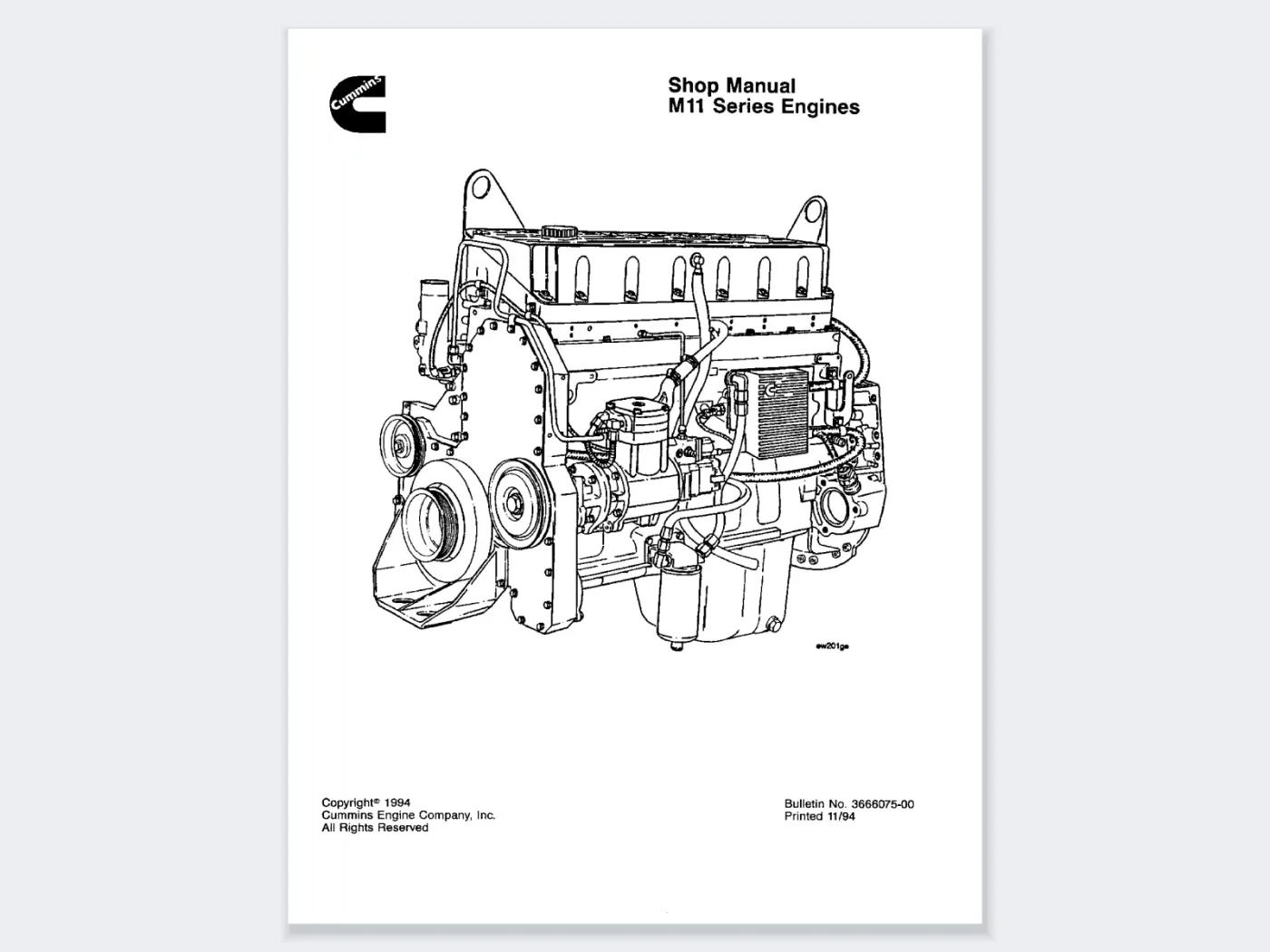

Cummins M11 Series Engine Shop Manual (Rebuild Procedures)

This 585-page Cummins shop manual is for rebuilding the M11 Series engine. In Cummins terms, a shop manual covers component rebuild with the engine out of the vehicle and on a stand.

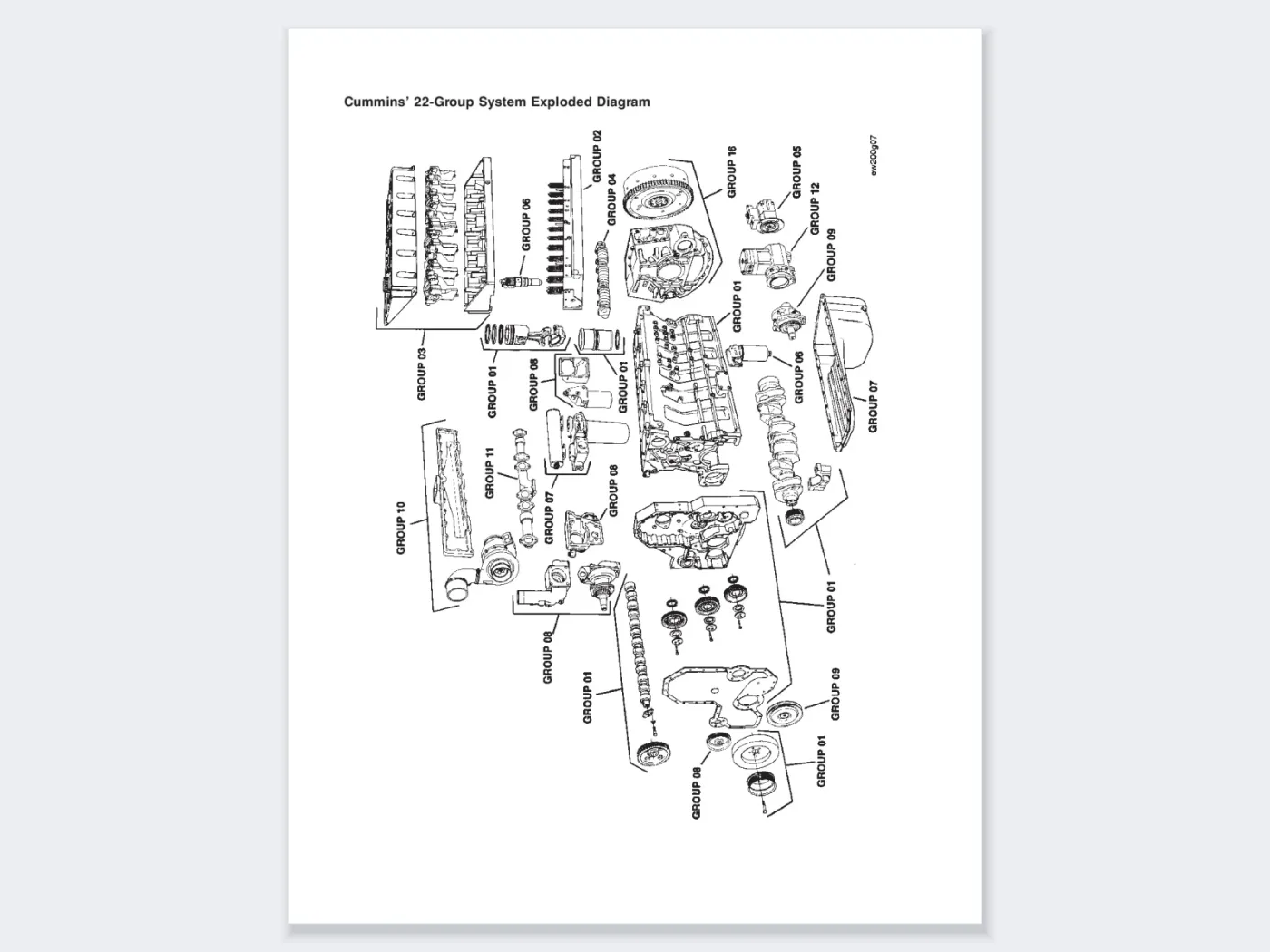

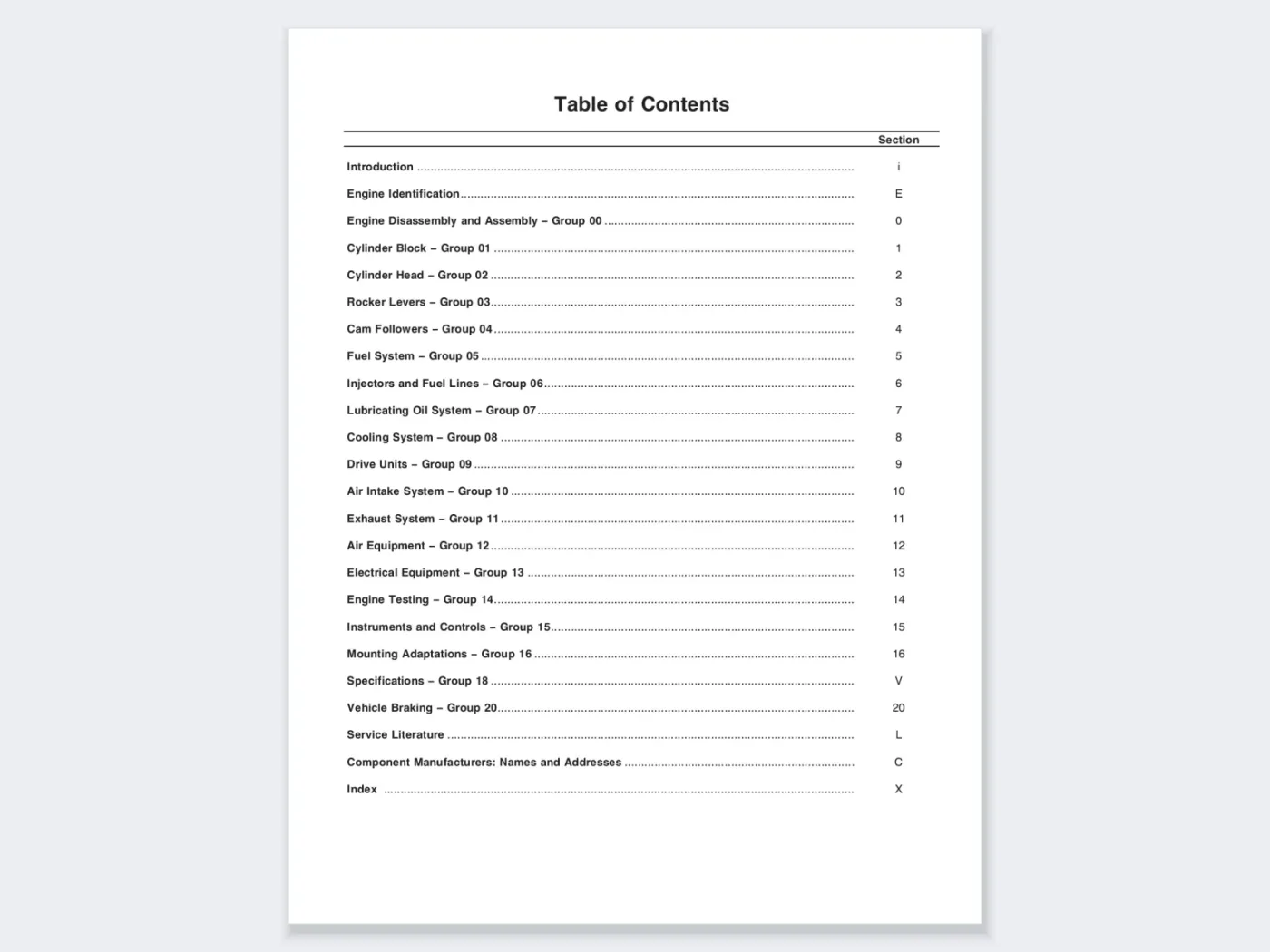

It follows the standard Cummins group layout: engine identification, disassembly and assembly (Group 00), cylinder block (01), cylinder head (02), rocker levers (03), cam followers (04), fuel system (05), injectors and fuel lines (06), lubricating oil (07) and cooling (08), then drive units, air, electrical, engine testing and mounting.

What the manual covers

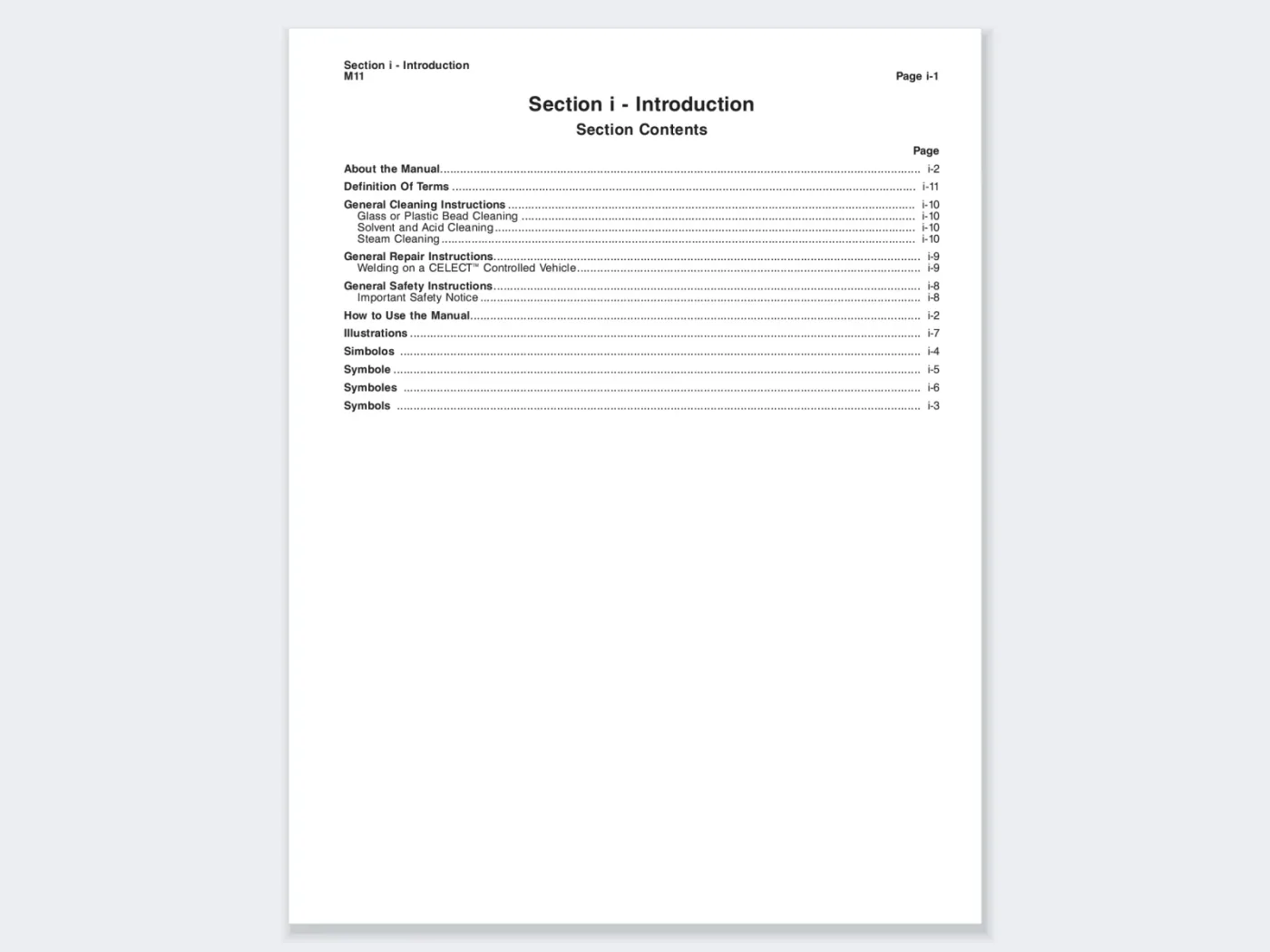

• Introduction and engine identification (Section E)
• Engine disassembly and assembly (Group 00)
• Cylinder block (Group 01)
• Cylinder head (Group 02)
• Rocker levers (Group 03)
• Cam followers (Group 04)
• Fuel system (Group 05)
• Injectors and fuel lines (Group 06)
• Lubricating oil system (Group 07)
• Cooling system (Group 08)
• Drive units, air, electrical, engine testing and mounting

Compatibility

• Models: M11 Series
• Manual type: Shop manual (component rebuild)
• Pages: 585

Before you buy

For in-chassis fault finding and repair, the M11 Troubleshooting and Repair Manual (Bulletin 3666139-00) is the better fit. Many workshops buy both.

Your engine's dataplate shows the engine model, the engine serial number (ESN) and the CPL number. Compare those with the models above. If you're not sure, email us the dataplate details and we'll check for you.

File format

PDF download. Nothing is shipped. Opens on a computer, tablet or phone.

We're an independent seller and are not affiliated with or endorsed by Cummins. Brand and model names are used only to identify the engines this manual covers.
